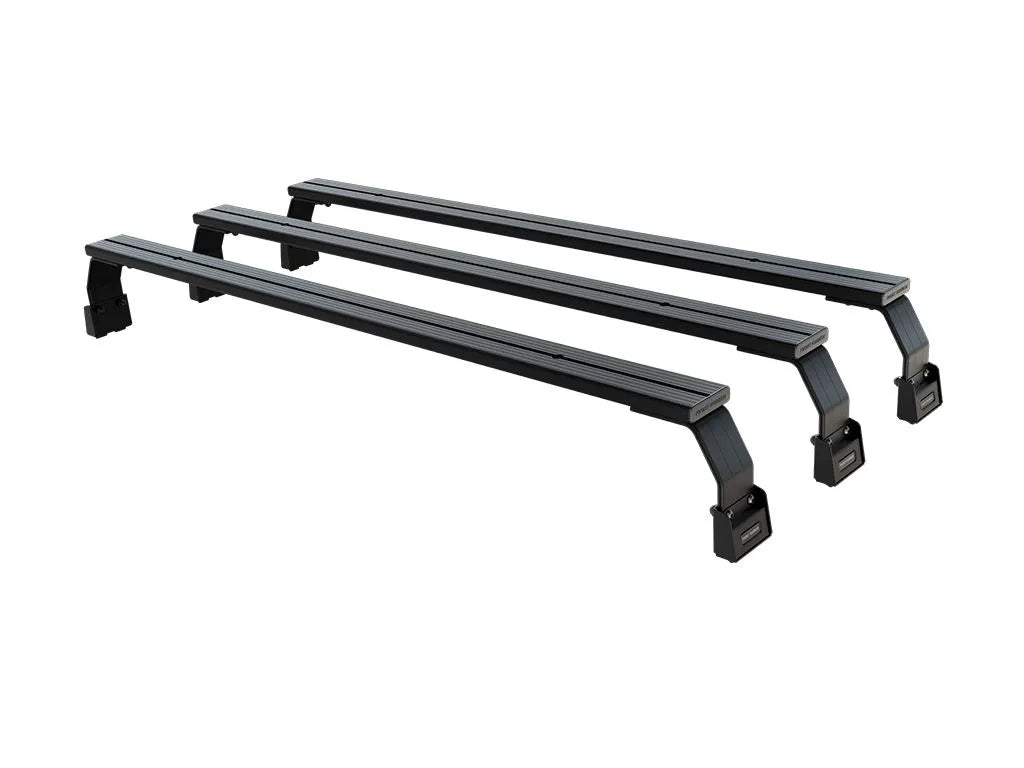

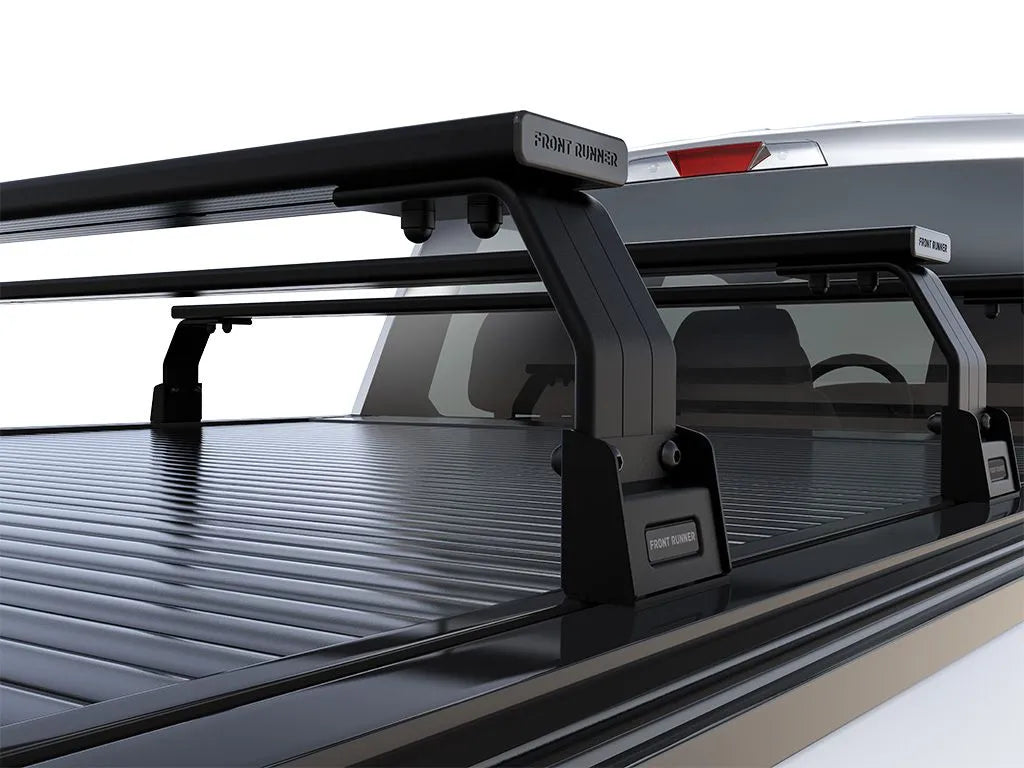

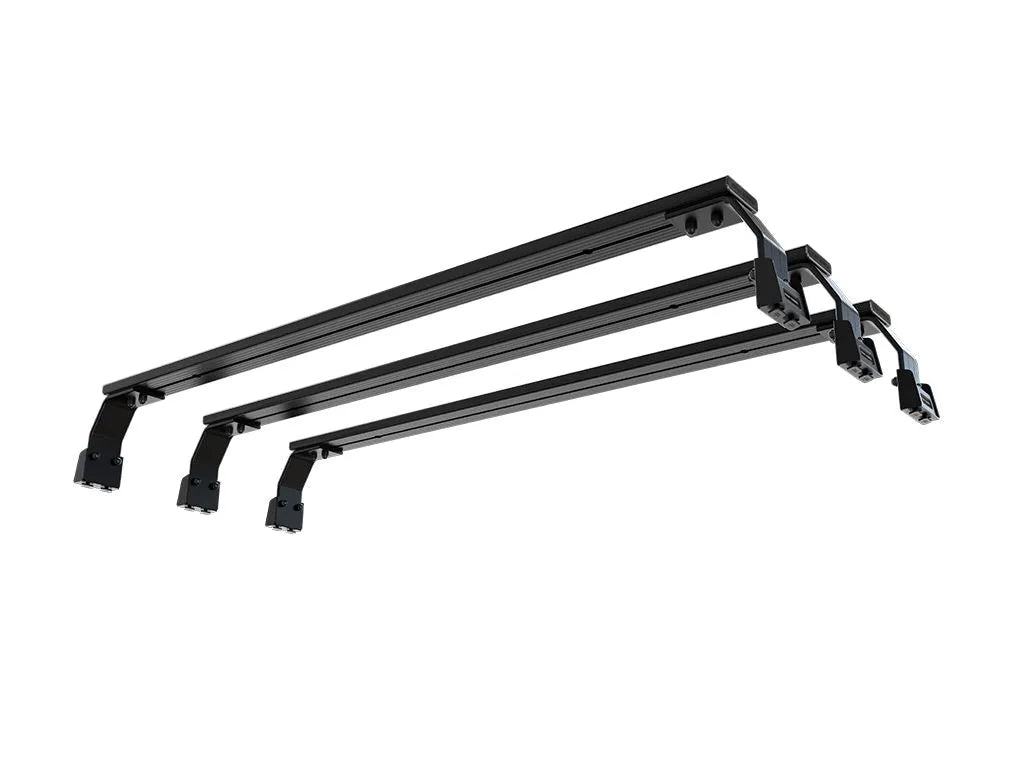

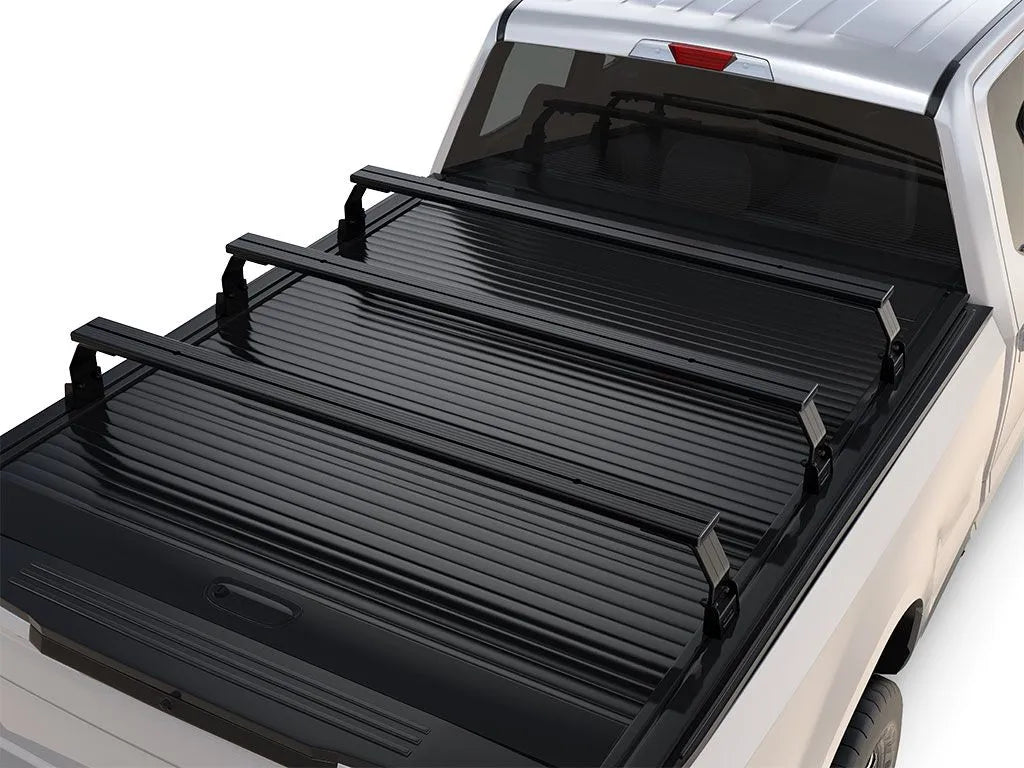

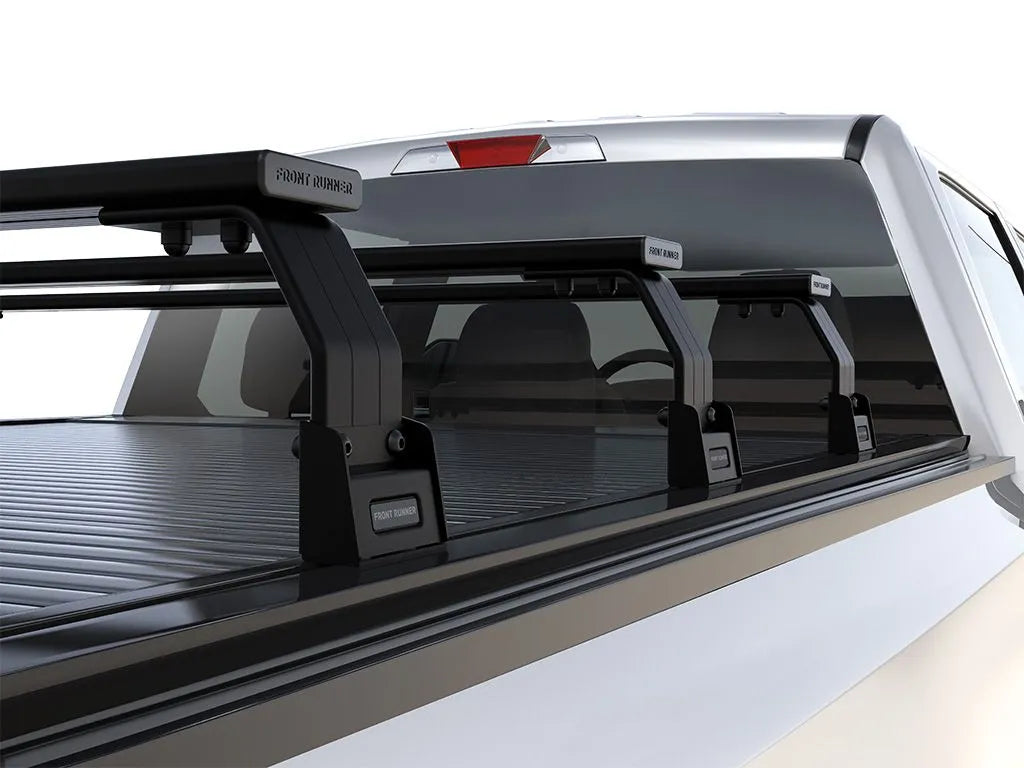

Front Runner Retrax XR Triple Load Bar Kit 6" 2005-Current Fits Toyota Tacoma

Product Description

Info

• Custom Fit for 2005-Current Toyota Tacoma – Designed for a secure and seamless installation into ReTrax XR rails.
• Low-Profile Design – Maximizes cargo space without impacting the truck’s aesthetics.
• Preserves Bed Functionality – Maintains full load bed capacity while keeping the drop-down door fully operational.
• Secure Gear Transport – Ideal for carrying gear, tools, and sports equipment on top of your truck.
• Durable Construction – Engineered to withstand rugged conditions for long-lasting performance in any environment.

Specs

Kit Components:

• 3x LASS028 - Pick-Up Roll Top Leg Mount
• 1x LBSK020 - Roof Load Bar Set 1425mm (W)

Material & Build:

• Frame: Black epoxy powder-coated T6 aluminium

Weight & Compatibility:

• Installed Weight: Approx. 8kg (17.64lbs)
• T-Slot Compatibility: The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

Height Adjustments:

• Determine Rack Height:
  • Load Bar Kit Only: Add 22mm (7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot.
  • With Legs: Add 22mm (7/8") to the height of the Legs to determine the rack height from the vehicle’s rain gutters.
  • With Foot Rails: Add 22mm (7/8") to the height of the Foot Rails to determine the rack height from the highest point of the vehicle’s roof.

Shipping Details:

• Dimensions:
  • Width: 160mm (6")
  • Length: 1510mm (59")
  • Height: 150mm (6")
• Shipping Weight: Approx. 10kg (22lbs)

Installation Instructions

Installation.pdf
